| Measuring Range | – 50℃~ 150℃ |
| Accuracy | 0.25%FS,0.5%FS |
| Insulation resistance | 0≥100MΩ （15℃~35℃，RH≤80%） |
| Power Supply | 16V～28VDC（Recommend 24VDC） |
| Output Signal | 4mA ~ 20mA DC,1V DC ~ 5V DC.etc. |
| Communication Protocol | HART,RS485 |
| Probe Length | 100mm ~ 10000mm |
| Probe Diameter | φ3,φ4,φ6 ,φ12,φ16 |
| Probe Material | SS304,SS316 |
| Wiring | GDM |
| Installation Method | Fixed thread type |

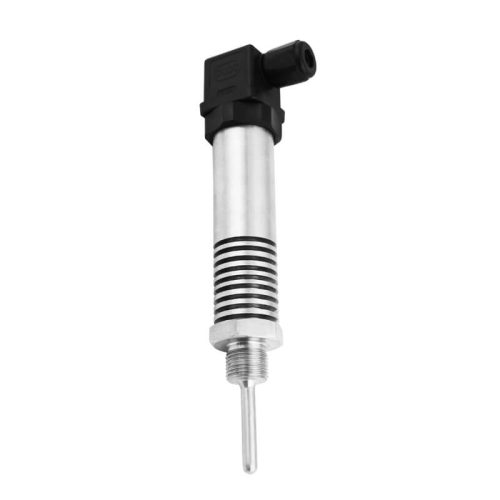

FDWB compact temperature transmitter/digital thermometer sensor is directly measure the temperature of liquid,gas medium,output signal is 4-20mA DC,with HART or not,or LCD LED display.
On-site temperature display, intuitive and convenient Safe and reliable, long service life Variety of structural
Output current or digital signals, save compensation wires, and have strong anti-interference ability Safe and
Output current or digital signals, save compensation wires, and have strong anti-interference ability Safe and
Fast response time, reducing dynamic error High mechanical strength, good pressure resistance Flexible installation High
