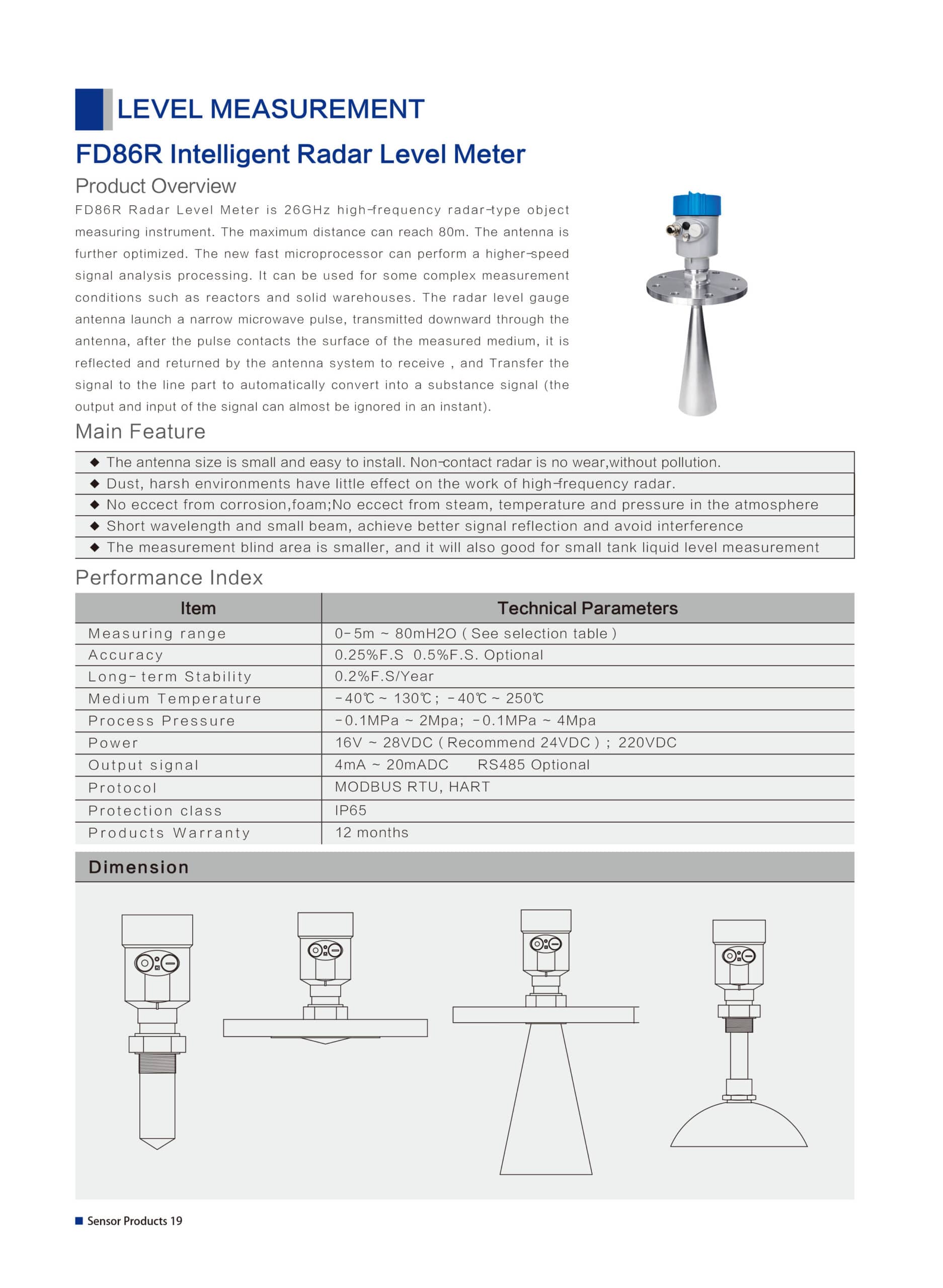

FD86R Radar Level Transmitter

  • Home
  • Products
  • FD86R Radar Level Transmitter

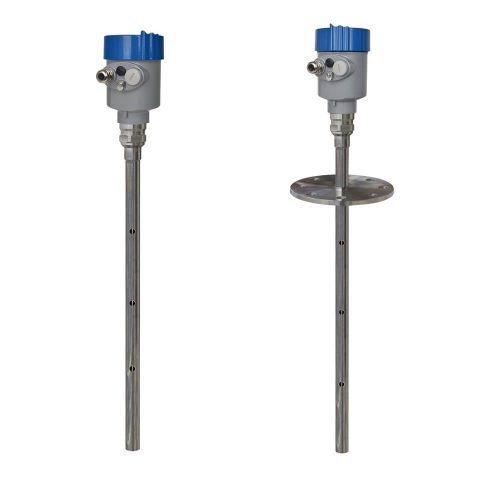

FD86R1

FD86R Radar Level Transmitter

Product Feature
  • The antenna size is small and easy to install. Non-contact radar is no wear,without pollution.
  • Dust, harsh environments have little effect on the work of high-frequency radar.
  • No eccect from corrosion,foam;No eccect from steam, temperature and pressure in the atmosphere
  • Short wavelength and small beam, achieve better signal reflection and avoid interference
  • The measurement blind area is smaller, and it will also good for small tank liquid level measurement

Inquiry of Product
PDF Download
  • Share:
  • Follow Us:
Facebook Twitter Linkedin Youtube Weixin Whatsapp
Measuring Range0- 5m～80mH2O（See selection table）
Accuracy0.25%F.S 0.5%F.S. Optional
Long Stability0.2%F.S/year
Medium Temperature– 40℃～130℃；- 40℃～250℃
Process Pressure– 0.1MPa～2Mpa；- 0.1MPa～4Mpa
Power16V～28VDC（Recommend 24VDC）；220VDC
Output signal4mA～20mADC RS485 Optional
ProtocolMODBUS RTU, HART
Protection classIP65
Products Warranty12 months

FD86R Radar Level Meter is 26GHz high-frequency radar-type object measuring instrument. The maximum distance can reach 80m. The antenna is further optimized. The new fast microprocessor can perform a higher-speed signal analysis processing. It can be used for some complex measurement conditions such as reactors and solid warehouses. The radar level gauge antenna launch a narrow microwave pulse, transmitted downward through the antenna, after the pulse contacts the surface of the measured medium, it is reflected and returned by the antenna system to receive , and Transfer the signal to the line part to automatically convert into a substance signal (the output and input of the signal can almost be ignored in an instant).
